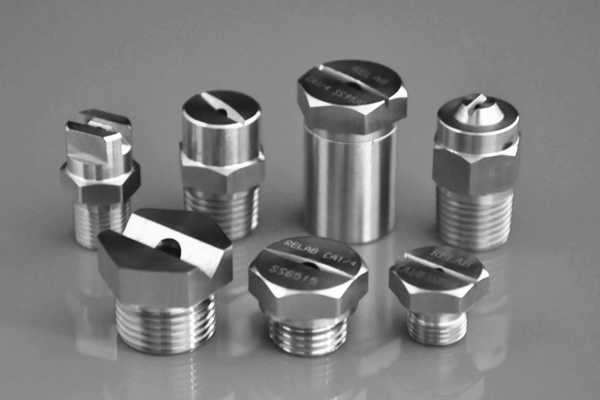

Standard Flat Fan Nozzles
The standard flat fan nozzle is of one-piece construction without internal parts, ensuring a smooth flow of spray and a uniform distribution of droplets. The spray gradually tapers from the center to the edge. When the flow rate is small and there are uneven particles in the liquid, a filter screen can be added to the tail of the nozzle to reduce clogging. When it is necessary to increase the jet distance and the uniformity of the spray effect, a jet stabilizer can configured inside the nozzle.
CA Cutty Flat Fan Nozzle
Model CA is a short head design with a parallel pipe thread. It is more suitable for tight headroom. Their short body design makes it possible to use nozzle spray pipes in such machines or systems where the available space is very limited.
- Model:
- CA Series
- Construction:
- One-piece body
- Material:
- Brass, 303SS, 304SS and 316SS
- Thread:
- 1/8 to 3/8 male BSPP/NPS
- Pressure:
- 0.7 to 20 bar
- Spray angle:
- 15° to 110° at 3 bar
- Flow rate:
- 2.4 to 53 lpm at 3 bar
CB Small-flow Flat Fan Nozzle
Model CB is a small flow flat fan nozzle with a T-shaped design to be more convenient and accurate arrangement and better spray effect. The coverage area overlaps by 30% to obtain complementary and more uniform distribution.
- Model:
- CB Series
- Construction:
- One-piece body
- Material:
- brass, stainless steel
- Thread:
- 1/8 to 1/4 male BSPT/NPT
- Pressure:
- 0.7 to 20 bar
- Spray angle:
- 15 to 110° at 3 bar
- Flow rate:
- 0.2 to 5.9 lpm at 3 bar
CC Medium-flow Flat Nozzle
The CC series nozzle is a medium flow nozzle, which has a V-style slot to allow for large flow at a small angle. The multi-purpose CC series nozzles can be used for the cooling of rolls, steel sheets and billets etc.
- Model:
- CC Series
- Construction:
- One-piece body
- Material:
- Brass, 303SS, 304SS and 316SS
- Thread:
- 1/4 to 1/2 male BSPT/NPT
- Pressure:
- 0.7 to 20 bar
- Spray angle:
- 15° to 110° at 3 bar
- Flow rate:
- 7.9 to 19.7 lpm at 3 bar
CE Oval-slot Flat Nozzle
The CE series nozzle is a medium flow nozzle, which has an oval slot to allow for large flow at a small angle. The multi-purpose CE series nozzles can be used for the cooling of rolls, steel sheets and billets etc.
- Model:
- CE Series
- Construction:
- One-piece hex body
- Material:
- Brass, 303SS, 304SS, 316SS
- Thread:
- 1/8 to 1 inch male BSPT/NPT
- Pressure:
- 0.7 to 20 bar
- Spray angle:
- 15° to 110° at 3 bar
- Flow rate:
- 24 to 158 lpm at 3 bar
