FG 316SS Ceramic Fog Nozzle
- Number:
- 170
- Brand:
- RELAB
- Model:
- FG Series
- Construction:
- Two-piece round body with a filter
- Material:
- 316 stainless steel
- Thread:
- 1/8 male BSPP/NPS parallel pipe thread
- Pressure:
- 30 to 80 bar
- Spray angle:
- 30° to 85° at 60 bar
- Orifice:
- 0.1mm, 0.15mm, 0.18mm, 0.2mm and 0.25mm
- Flow rate:
- (0.2mm) 3.1 lph at 60 bar
- Filterable:
- Yes
Design Features
Characteristics:
FG Series nozzle is a fine fog nozzle made of 316 stainless steel, which consists of body, cap, spray disc and filter plug. And it has a built-in guide-flow vane and anti-drip device to avoid water dripping at low pressure. When the pressure is below 15 bar, the nozzle stops working, and when the pressure exceeds 25 bar, the nozzle starts spraying. We recommend a minimum operating pressure of 40 bar to achieve optimal spray results.
The unique design of the FG fog nozzle provides a special usage condition, allowing it to operate under a working pressure of 100-120 bar. For large areas, longer pipes will cause pressure drop, affecting the overall spray effect. However, after enhancing the pressure, ordinary mist nozzles cannot withstand such high pressure, and this enhanced FG fog nozzle was born in response to the needs of the times.
| Spray Orifice Selection | Flow Rate ± 8% (LPH) at different pressure values (BAR) |
Spray angle (°) |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity Code | Orifice Diameter | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 25 | 50 | 70 |
| 1 | 0.10mm/004" | - | - | 1.16 | 1.24 | 1.32 | 1.39 | 1.46 | 1.52 | 1.58 | 1.64 | 1.70 | 1.76 | - | 35° | 42° |
| 15 | 0.15mm/006" | - | 1.30 | 1.41 | 1.50 | 1.59 | 1.68 | 1.76 | 1.84 | 1.92 | 1.99 | 2.06 | 2.13 | - | 39° | 44° |
| 18 | 0.18mm/007" | - | 1.63 | 1.76 | 1.88 | 1.99 | 2.10 | 2.20 | 2.30 | 2.39 | 2.48 | 2.57 | 2.66 | - | 43° | 62° |
| 2 | 0.20mm/008" | 2.07 | 2.24 | 2.42 | 2.58 | 2.74 | 2.89 | 3.03 | 3.17 | 3.30 | 3.42 | 3.54 | 3.66 | 26° | 45° | 65° |
| 25 | 0.25mm/010" | 2.09 | 2.29 | 2.48 | 2.65 | 2.81 | 2.96 | 3.10 | 3.24 | 3.37 | 3.50 | 3.63 | 3.74 | 27° | 60° | 67° |
| 3 | 0.30mm/012" | 2.40 | 2.63 | 2.84 | 3.04 | 3.23 | 3.40 | 3.57 | 3.72 | 3.88 | 4.02 | 4.16 | 4.30 | 30° | 82° | 89° |
Ordering Number: FG1/8BSPP-316SS+CE2
| Nozzle Code | Description |
|---|---|
| FG | Nozzle Series |
| 1/8 BSPP | 1/8BSPP: 1/8 male BSPP thread; 1/8 NPS: 1/8 male NPS thread |
| 316SS | 316SS: 316 stainless steel body; 304SS: 304 stainless steel |
| CE | Materials of spray orifice (CE:Ceramic disc; RB: Ruby disc; SS: stainless steel disc) |
| 2 | Capacity code (2: 0.2mm orifice diameter; 25: 0.25mm orifice diameter) |
FG fog nozzle, is widely used in smart humidity control in greenhouse, cigarette factories and textile workshops, under the supply of high-quality water, the service life can be up to 6 years. And we are available to order the components to replace the old ones, including ceramic spray disc, anti-drip valves, filter plug, guide flow vane, etc.
FD Cleanable Ceramic Mist Nozzle
Model FD is a common high pressure mist nozzle. Its open pressure is 20 bar due to an internal anti-drip valve. Model FD-CE is a ceramic orifice nozzle without the filter. The construction is the same as FD-SS model, except for the orifice.
Read MoreFE Filterable Ceramic Mist Nozzle
Model FE is a lengthened high pressure mist nozzle. Besides of the anti-drip valve, it still has a filter base. Its mini. orifice diameter is 0.1mm. The 316 stainless steel is available on request.
Read MoreFF Filterable Ceramic Mist Nozzle
Model FF is made of 304 stainless steel, which consists of the body, cap, spray disc, anti-drip valve and filter plug. It has a hexagon body with 1/8" male taper pipe threads. All parts are removable, cleanable and replacement.
Read More
Advantages:
- All of metal pieces are made of 316 stainless steel
- Fits standard 12mm flat sockets; no special tools required; easy to remove and maintain
- Larger 316 stainless steel body, larger ceramic disc, larger seal ring, and larger filter plug
- Removable and cleanable spray discs reduce maintenance costs
- Accept orders for nozzle components to reduce the cost of purchasing new ones
Construction:
- Two-piece round body with a filter plug
- Built-in an anti-drip valve and replaceable filter
- Standard material is 316 stainless steel
- Connection types are available in M8 or 1/8 male either BSPP or NPS parallel pipe thread
- Optional ceramic spray orifices from 0.1mm, 0.15mm, 0.18mm up to 0.25mm
Typical Application:
- Greenhouse cooling and humidity control
- Humidity maintenance in storage workshops
- Paper mill, cigarette mill humidity control
- Textile mill humidity control and eliminate static electricity
Application Cases

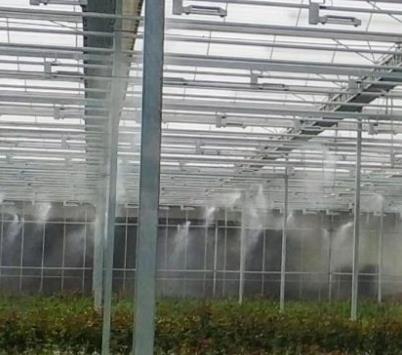

Misting and Humidification in Greenhouse
Mist systems are an important part of any greenhouse operation, as they play a vital role in the production of both seed and vegetative plant material. Their fundamental purpose is to deliver an intermittent source of water in low volumes to plant material being vegetatively propagated or to seeds being germinated. Mist systems, when compared to irrigation systems, typically deliver a smaller particle of water for shorter intervals of time. Depending on how a mist system is used and the type of crop it’s being used on, the crop’s production period can either be accelerated or sl ...

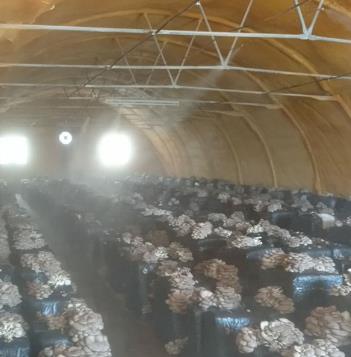

Read MoreHumidification for Mushroom Growth
Mushrooms are moisture-loving creatures, and all stages of growth are inseparable from humidity. Therefore, from spore germination to harvesting, a certain amount of water and relative air humidity are required. It can also be said that without water, there is no life. If the air is dry, its growth rate and output will be affected, so it is necessary to humidify the mushroom house at this time. In this way, the air humidity can be increased, thereby promoting the growth of mushrooms and improving the benefits of mushrooms. ...

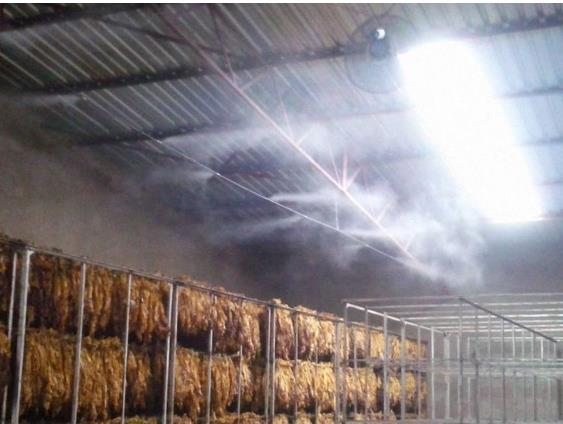

Read MoreTobacco Moisture Control
As for cigarette factories, from tobacco leaf storage, tobacco production to rolling, these processes have high requirements for environmental temperature and humidity. There are different choices from Relab's fine mist nozzles, which can effectively control the temperature and temperature of different processes in the production process of cigarettes. ...
Read MoreIndoor Cooling and Humidification
Regulating indoor air humidity visibly increases textile production productivity and is a key factor for quality assurance in the textile industry. ...

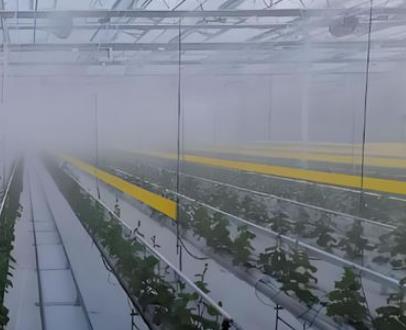

Read MoreCooling and Humidification Systems in Greenhouses
