Narrow-angle Full Cone Nozzles
The narrow angle full cone nozzle is an industrial device specifically designed for high impact and precise spraying. The spray angle typically ranges from 15° to 30°, creating highly concentrated spray droplets with strong impact force and far greater penetration than ordinary nozzles. It is suitable for high impact scenarios such as cleaning crushed stone, fruit and vegetable washing, paper machine spraying, and oil stain removal.

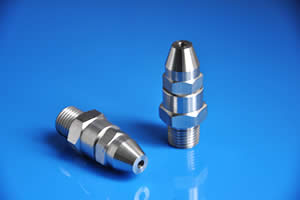

BG Narrow-angle Full Cone Nozzle
Model BG is a combined full cone nozzle, which delivers a narrow angle full cone spray pattern. The spray angle are 15° or 30° at 3 bar pressure. It is more convenient to choose a smaller flow rate with a larger thread size.
- Model:
- BG Series
- Construction:
- Two-piece body with slotted vane
- Material:
- Brass, 303 stainless, 316 stainless steel
- Thread:
- 1/8, 1/4, 3/8 and 1/2 male BSPT/NPT
- Pressure:
- 1 to 20 bar
- Spray angle:
- 15°/30°
- Flow rate:
- 2.8 to 36 LPM at 3 bar

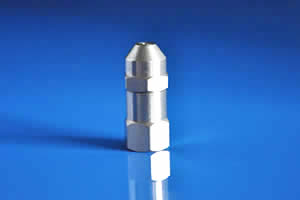

BH Narrow-angle Full Cone Nozzle
Model BH is a combined full cone nozzle, they are the same features as the model BG except the thread type. The spray angles are optional in 15° or 30° at 3 bar pressure. It is more convenient to choose a smaller flow rate with a larger thread size.
- Model:
- BH Series
- Construction:
- Two-piece hex body with slotted vane
- Material:
- Brass, 303 stainless, 316 stainless steel
- Thread:
- 1/8, 1/4, 3/8 and 1/2 female BSPP/NPS
- Pressure:
- 1 to 20 bar
- Spray angle:
- 15°/30°
- Flow rate:
- 2.8 to 36 LPM at 3 bar
