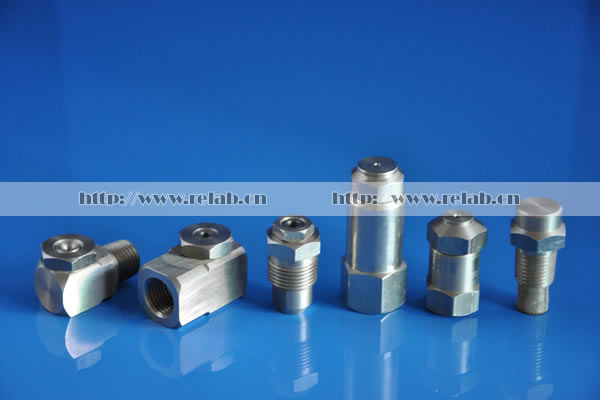

A Series: Hollow Cone Nozzles
The model A/AA hollow cone nozzles produce a tangential-flow spray type, and have a 90º spray angle from the inlet axis and removable cap. Axial-flow hollow cone nozzles utilize a spiral grooves in the swirl inserts ensure an efficient whirling of the liquid, and produce a fine and uniform drop particles. The hollow cone nozzles are used in the washing cooling of air and gas, dust control, surface treatment, humidification and chemical processes.
A Hollow Cone Nozzle
Type A is a tangential-flow hollow cone nozzle with a female thread body, which is a combination of two pieces. The range of flow rate is from 0.32LPM to 78LPM at 2 bar. It delivers a standard spray angles of 55°~90° at 2 bar.
- Model:
- A Series
- Construction:
- two-piece, removable cap
- Material:
- Brass, SS303, SS304 or SS316
- Thread size:
- 1/8, 1/4, 3/8, 1/2 or 3/4
- Pressure:
- 0.5-10 bar
- Spray angle:
- 58°~90°at 1.5 bar
- Flow rate:
- 0.4~95L/min at 3 bar
A-W Hollow Cone Nozzle
Model A-W is a tangential-flow hollow cone nozzle with a female thread body, which is a combination of two pieces. The range of flow rate is from 0.32LPM to 32LPM at 2 bar. It delivers a wide spray angles of 95°~144° at 2 bar.
- Model:
- A-W Series
- Construction:
- Two-piece, removable cap
- Material:
- Brass, SS303, SS304, SS316
- Thread Size:
- 1/8, 1/4, 3/8, 1/2
- Pressure:
- 0.5 to 10 bar
- Spray angle:
- 110° to 144° at 1.5 bar
- Flow rate:
- 0.32 to 32 lpm at 2 bar
AA Hollow Cone Nozzle
Model AA is a tangential-flow hollow cone nozzle with a male thread body, which is a combination of two pieces. The range of flow rate is from 0.32LPM to 78LPM at 2 bar. It delivers a standard spray angles of 55°~90° at 2 bar.
- Model:
- AA Series
- Construction:
- two-piece, removable cap
- Material:
- Brass, SS303, SS304, SS316, Plastic
- Thread:
- 1/8, 1/4, 3/8, 1/2 or 3/4 male BSPT/NPT
- Pressure:
- 0.5~10 bar
- Spray angle:
- 58°~90°
- Flow rate:
- 0.28~67LPM at 1.5 bar
AA-W Hollow Cone Nozzle
Model AA-W is a tangential-flow hollow cone nozzle with a male thread body, which is a combination of two pieces. The range of flow rate is from 0.32LPM to 32LPM at 2 bar. It delivers a wide spray angles of 95°~144° at 2 bar.
- Model:
- AA-W Series
- Construction:
- Two-piece, removable cap
- Material:
- PVC, PP, PVDF, Brass, SS303, SS316
- Thread:
- 1/8, 1/4, 3/8, 1/2, 3/4 male BSPT/NPT
- Pressure:
- 0.5~10 bar
- Spray angle:
- 110°~144° at 1.5 bar
- Flow rate:
- 0.32~32LPM at 2.0 bar

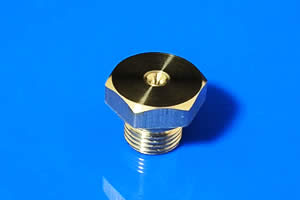

AB Hollow Cone Nozzle
Model AB produces a very fine hollow cone spray pattern, spray direction is in line with the inlet pipe. The machined inside vane has two precision machined spiral grooves, which produces a wide range of capacities starting from very low values.
- Model:
- AB Series
- Construction:
- One-piece body, with a slotted vane
- Thread:
- 1/8, 1/4, 3/8, 1/2 up to 1 inch
- Pressure:
- 0.7~10 bar
- Spray angle:
- 55°~92° at 3 bar
- Flow rate:
- 0.2~46LPM at 3 bar

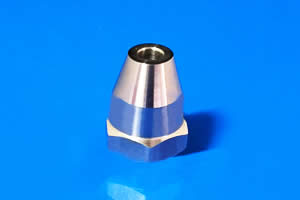

AC Short Hollow Cone Nozzle
Model AC is a cutty head nozzle with a parallel pipe thread. The thread size is available from 1/4 up to 1 inch. Easy to install in a small space. An O-ring or gasket is required to seal. Available to use a welding base to connect it with pipe.
- Model:
- AC Series
- Construction:
- One-piece body, with a spiral groove vane
- Material:
- Bras, 303SS, 304SS, 316SS
- Thread:
- 1/4, 3/8 or 1/2
- Pressure:
- 0.5~10 bar
- Spray angle:
- 57°~93° at 1.5 bar
- Flow rate:
- 0.17~38LPM at 2 bar
AD Hollow Cone Nozzle
Model AD is a two-piece design with a removable cap. Water enters from the side, so there is a long tail behind the body. Available connection sizes are from 1/8" to 3/4" with flow rates of 0.93 to 54.3 LPM at 1.0 bar.
- Model:
- AD Series
- Material:
- PVC, PP, Brass, Stainless steel
- Thread:
- 1/8 to 3/4 male BSPT/NPT
- Pressure:
- 0.5 to 10 bar
- Spray angle:
- 60° to 80° at 1.5 bar
- Flow rate:
- 1.1 to 28 lpm at 1.5 bar
AE Hollow Cone Nozzle
Model AE is an axial-flow wide-angle hollow cone nozzle. The outlet has a deflection plate to divert water, so the AE series has a larger spray angle and less impact force. It is used mainly for air washing, dust suppression and cooling processes.
- Model:
- AE Series
- Material:
- PVC, PP, Brass, Stainless steel
- Thread:
- 1/4, 3/8 male BSPT/NPT
- Pressure:
- 0.5 to 10 bar
- Spray angle:
- 120° to 180°
- Flow rate:
- 6.3 to 32 LPM at 2 bar

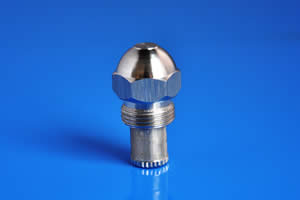

AF Hollow Cone Nozzle
In all A Series hollow cone nozzles, the model AF produces the finest droplet sizes, even at low pressure values. It's an ideal choice for atomizing water, oils, potions and other additives. The flow rates are from 1.3 to 92.0 lph at 4 bar.
- Model:
- AF Series
- Construction:
- Two-piece, with an internal insert and strainer
- Thread:
- 9/16-24UNEF or 1/4 male BSPP/NPS
- Pressure:
- 4~35 bar
- Spray angle:
- 45°~90° at 9 bar
- Flow rate:
- 1.3~92.0 LPH at 4 bar
AH Hollow Cone Nozzle
- Model:
- AH Series
- Construction:
- one-piece by casting, without internal part
- Material:
- 304SS, 316SS
- Thread:
- 3/4~2 inch BSPP/NPS female
- Pressure:
- 0.5~7 bar
- Spray angle:
- 70°~130° at 2 bar
- Flow rate:
- 1.4~544LPM at 2 bar
AI Hollow Cone Nozzle
AI Series hollow cone nozzles are a two-piece combination nozzle with a removable spray cap assembled on the top of the body.
- Model:
- AI Series
- Construction:
- two-piece, female thread, without internal part
- Materials:
- SS316
- Thread:
- 11/4, 11/2, 2 and 21/2
- Pressure:
- 0.5~10 bar
- Spray angle:
- 72°~88° at 1.5 bar
- Flow rate:
- 66~868LPM at 2 bar
