H Series: Liquid Mixing Jet Nozzles

Liquid Mixing Jet Nozzles

Mixing Jet Nozzles are designed for "in-tank" applications. The Eductors operates on the principle of flow dynamics pressurized fluid is accelerated through the nozzle to become a high velocity stream that entrains tank contents and intimately mixes with them. This combined stream exits the eductors at a high velocity creating a flow field capable of causing additional agitation and mixing the tank contents.

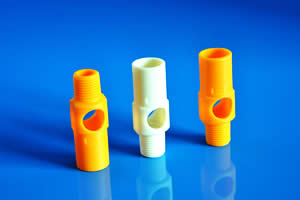

Mini Plastic Tank Nozzle

Mini Plastic Tank Nozzle The nozzles can pull in 2 gallons of surrounding solution for every 1 gallon pumped from nozzle input, so its circulation ratio of supply to discharge is 1:3, which enable smaller pumps to circulate large volumes of tank solution.
Model:
HA series
Construction:
One-piece body
Material:
PP(Polypropylene) plastic
Thread:
1/4 male
Pressure:
0.7 to 4 bar
Max. jet length:
0.5 to 4 meters

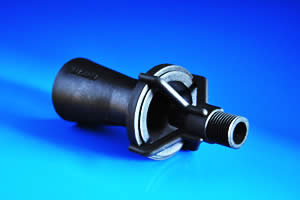

Plastic Mixing Jet Nozzle

Plastic Mixing Jet Nozzle Mixing Jet Nozzles use a unique venturi design which enable smaller pumps to circulate large volumes of tank solution. General uses include lifting, pumping, mixing, and agitating of liquids as well as handling granular solids and slurries.
Model:
HB series
Construction:
Two-piece body
Material:
GFRP, PVDF plastic
Thread:
1/4, 3/8, 1/2 and 3/4 inch
Pressure:
0.7 to 4 bar
Max. plume length:
0.9 to 10 meters
Flow rate:
11.3 to 43 lpm

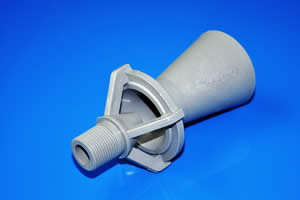

Liquid Mixing Eductor

Liquid Mixing Eductor The nozzles can pull in 4 gallons of surrounding solution for every 1 gallon pumped from nozzle input, so its circulation ratio of supply to discharge is 1:5, which enable smaller pumps to circulate large volumes of tank solution.
Model:
HC series
Construction:
Two-piece body
Material:
GFRP, PVDF plastic
Thread:
3/4 inch
Pressure:
0.7 to 4 bar
Max. plume length:
10 meters
Flow rate:
11.3 to 43 lpm

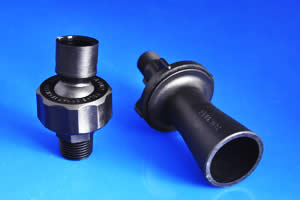

Threaded Adjustable-ball and Eductor

Threaded Adjustable-ball and Eductor Threaded adjustable-ball seat simply screws into a threaded pipe and is available with a variety of spray tips. The swivel adjustable-ball allows 45°direction control for precise spray coverage. For sizes 1/4", 3/8" and 1/2" only.
Color:
black
Construction:
Multi-piece construction
Material:
GFRP/PVDF plastic
Seat thread:
1/8, 1/4, 3/8 or 1/2 inch
Pressure:
0.5 to 4 bar
Eductor thread:
1/4, 3/8 or 1/2 inch

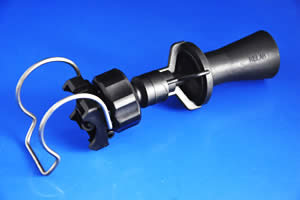

Clip Adjustable-ball and Eductor

Clip Adjustable-ball and Eductor Clip adjustable-ball seat simply clips on a pre-drilled pipe and is available with a variety of spray tips. The swivel adjustable-ball allows 45°direction control for precise spray coverage. For sizes 1/4", 3/8" and 1/2" only.
Color:
black
Construction:
Multi-piece construction
Material:
GFRP plastic
Pipe size:
1, 1-1/4, 1-1/2 and 2 inch
Pressure:
0.7 to 4 bar
Drilling hole:
14 mm

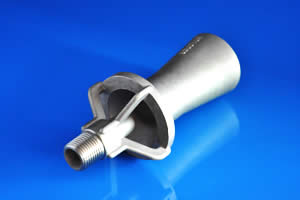

304SS Mixing Eductor Nozzle

304SS Mixing Eductor Nozzle Mixing Eductor Nozzles vigorously and efficiently circulate the liquid contents of tanks without powered impellers or other insertion-type rotating mechanical devices.
Model:
HD series
Construction:
One-piece body
Material:
304/316 stainless steel
Thread:
1/4, 3/8, 1/2, 1-1/2 or 2 inch BSPT/NPT
Pressure:
0.7 to 4 bar
Flow rate:
11.3 to 496 lpm

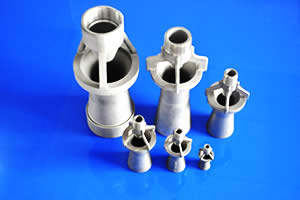

316SS Mixing Eductor Nozzle

316SS Mixing Eductor Nozzle Mixing Eductor Nozzles can often replace motor-driven mechanical agitators and avoid the maintenance associated with mechanical devices.
Model:
HD series
Construction:
One-piece body
Material:
304/316 stainless steel
Thread:
1/4, 3/8, 1/2, 3/4, 1-1/2 or 2 inch
Pressure:
0.7 to 4 bar
Flow rate:
11.3 to 496 lpm
