F Series: Mist Nozzles
RELAB's F series mist nozzles are available in two types: low-pressure micro mist nozzles and high-pressure fine mist nozzles. All high-pressure fine mist nozzles include an anti-drip device, which have a open pressure of 20 bar and close pressure of 15 bar. All water sources supplied to fine mist nozzles must be filtered by a 5~10 micron filter. In addition, groundwater must be softened.
FA Mist Tip
Model FA is a low pressure mist tip, the body is made of brass or stainless steel. This mist tip is available in combination with various spray clusters. This mist tip is widely used in mosquito control and outdoor humidification.
- Model:
- FA Series
- Construction:
- One-piece body without the anti-drip valve
- Material:
- nickel plated brass or stainless steel
- Connection:
- 10-24, 12-24, W3/16 or M5
- Pressure:
- 3-15 bar
- Orifice:
- 0.2mm, 0.3mm up to 1.0mm
- Spray angle:
- 42° to 90° at 10 bar
- Flow Rate:
- (0.3mm) 2.5 lph at 10 bar
FA Barb Mist Tip
Model FA is a low pressure mist tip, the body is made of brass or stainless steel. The connection type is available in thread or barb style. This barb stem can be inserted into a 6mm or 1/4" plastic tubing.
- Model:
- FA Series
- Construction:
- One-piece body without the anti-drip valve
- Material:
- nickel plated brass or stainless steel
- Connection:
- 6mm or 1/4 inch barb
- Pressure:
- 3-15 bar
- Orifice:
- 0.2mm, 0.3mm up to 1.0mm
- Spray angle:
- 42° to 90° at 10 bar
- Flow rate:
- (0.3mm) 2.5 lph at 10 bar
FB Quick connect Mist Tip
Model FB is a low pressure mist tip, the body is made of brass or stainless steel. The connection body is available in push-in stem style. It is very easy to push into a quick couplings. This nozzle can be fitted with a filter plug at the inlet.
- Model:
- FB Series
- Construction:
- Two-piece body with an anti-drip valve
- Material:
- nickel plated brass or stainless steel
- Connection:
- 6mm or 1/4 inch push-in stem
- Pressure:
- 7 to 15 bar
- Spray angle:
- 42° to 90° at 10 bar
- Orifice:
- 0.2mm, 0.3mm up to 1.0mm
- Flow rate:
- (0.3mm orifice) 4.65 lph at 10 bar
FC Plastic Micro Mist Nozzle
Model FC is hydraulic plastic mist nozzle, the body is made of PP plastic in black color with a screen mesh. This plastic mist nozzle is widely used in mosquito control, yard, stock farm cooling and humidification.
- Model:
- FC Series
- Construction:
- One-piece body without anti-drip valves
- Material:
- polypropylene plastic
- Thread:
- 1/8 inch male either BSPT or NPT
- Pressure:
- 4 to 15 bar
- Orifice:
- 0.3mm/0.4mm
- Spray angle:
- 65° to 80° at 4 bar
- Flow rate:
- (0.3mm) 3.1 lph at 4 bar
Anti-drip Plastic Micro Mist Nozzle
Model FC is hydraulic plastic mist nozzle, there is an anti-drip valve inside of it, so this type needs a higher working pressure of more than 3 bar. This plastic mist nozzle is widely used in mosquito control, yard, stock farm cooling and humidification.
- Model:
- FC Series
- Construction:
- One-piece body with an anti-drip valve
- Material:
- polypropylene plastic
- Thread:
- 1/8 inch male either BSPT or NPT
- Pressure:
- 4 to 15 bar
- Orifice:
- 0.3mm/0.4mm
- Spray angle:
- 65° to 80° at 4 bar
- Flow rate:
- (0.3mm) 3.1 lph at 4 bar
FD Stainless Steel Fine Mist Nozzle
Model FD is a common high pressure mist nozzle. Its open pressure is 20 bar due to an internal anti-drip valve. This model is without any filter or strainer/screen, so the mini. orifice diameter is 0.2mm only.
- Model:
- FD Series
- Construction:
- Two-piece round body without filter plug
- Material:
- nickel plated brass or 304SS
- Thread:
- W3/16, 10/24, 12/24 or M5
- Pressure:
- 30 to 80 bar
- Spray angle:
- 30° to 90° at 60 bar
- Orifice:
- 0.2mm, 0.25mm, 0.3mm up to 0.8mm
- Filterable:
- No
FF Filterable Fine Mist Nozzle
Model FF is made of 304 stainless steel, which consists of the body, cap, spray disc, anti-drip valve and filter plug. It has a hexagon body with 1/8" male taper pipe threads. All parts are removable, cleanable and replacement.
- Model:
- FF Series
- Construction:
- Two-piece hexagon body with a filter plug
- Material:
- 304 stainless steel
- Thread:
- 1/8 male BSPT/NPT
- Pressure:
- 30 to 80 bar
- Spray angle:
- 30° to 85° at 60 bar
- Flow rate:
- 0.1mm, 0.15mm, 0.2mm up to 0.5mm
FJ SS Impact Pin Mist Nozzle
Model FJ produces extremely fine fog masses, which is especially suitable for spray humidification and making artificial landscapes outdoor. The full stainless steel body is available in various orifice diameter.
- Model:
- FJ Series
- Construction:
- One-piece body with a filter plug
- Material:
- 304 stainless steel or 316 stainless steel
- Thread:
- 1/8 or 1/4 male BSPT/NPT
- Pressure:
- 20 to 70 bar
- Spray angle:
- 80° to 120° at 60 bar
- Orifice:
- 0.2mm, 0.3mm up to 1.0mm
FD Cleanable Ceramic Mist Nozzle
Model FD is a common high pressure mist nozzle. Its open pressure is 20 bar due to an internal anti-drip valve. Model FD-CE is a ceramic orifice nozzle without the filter. The construction is the same as FD-SS model, except for the orifice.
- Model:
- FD Series
- Construction:
- Two-piece body without the filter
- Material:
- nickel plated brass or 304 stainless steel
- Thread:
- 10/24, 12/24, W3/16 or M5
- Pressure:
- 20 to 70 bar
- Spray angle:
- 30° to 90° at 60 bar
- Flow rate:
- 0.2mm, 0.25mm, 0.3mm up to 0.8mm
- Filterable:
- No
FE Filterable Ceramic Mist Nozzle
Model FE is a lengthened high pressure mist nozzle. Besides of the anti-drip valve, it still has a filter base. Its mini. orifice diameter is 0.1mm. The 316 stainless steel is available on request.
- Model:
- FE Series
- Construction:
- Three-piece body with filter base
- Material:
- nickel plated brass, 304 stainless steel
- Thread:
- 10/24, 12/24, W3/16 or M5
- Pressure:
- 30 to 70 bar
- Spray angle:
- 30° to 90° at 60 bar
- Flow rate:
- 0.1mm, 0.15mm, 0.2mm up to 0.5mm ceramic
- Filterable:
- Yes
FF Filterable Ceramic Mist Nozzle
Model FF is made of 304 stainless steel, which consists of the body, cap, spray disc, anti-drip valve and filter plug. It has a hexagon body with 1/8" male taper pipe threads. All parts are removable, cleanable and replacement.
- Model:
- FF Series
- Construction:
- Two-piece hexagon body with a filter plug
- Material:
- 304 stainless steel
- Thread:
- 1/8 male BSPT/NPT
- Pressure:
- 30 to 80 bar
- Spray angle:
- 30° to 85° at 60 bar
- Flow rate:
- 0.1mm, 0.15mm, 0.2mm, 0.3mm up to 0.5mm
- Filterable:
- Yes
FG 316SS Ceramic Fog Nozzle
Compared to the FD, FE and FF series, the FG model has a larger ceramic spray disc and SS316 body. Ceramic material has a higher finish than stainless steel, and the liquid has a stronger pass rate at the same pressure.
- Model:
- FG Series
- Construction:
- Two-piece round body with an anti-drip valve
- Material:
- 316 stainless steel
- Thread:
- 1/8 male BSPP/NPS parallel pipe thread
- Pressure:
- 30 to 80 bar
- Spray angle:
- 30° to 85° at 60 bar
- Orifice:
- 0.1mm, 0.15mm, 0.18mm, 0.2mm and 0.25mm
- Flow rate:
- (0.2mm) 3.1 lph at 60 bar
- Filterable:
- Yes
FH Brass Ceramic Fog Nozzle
Compared to the FD, FE and FF series, the FH model has a larger ceramic spray disc and 1/4" male thread. Ceramic material has a higher finish than stainless steel, and the liquid has a stronger pass rate at the same pressure.
- Model:
- FG Series
- Construction:
- Two-piece round body with an anti-drip valve
- Material:
- Brass body and 316SS cap
- Thread:
- 1/4 male BSPT/NPT threads
- Pressure:
- 30 to 80 bar
- Spray angle:
- 30° to 85° at 60 bar
- Orifice:
- 0.1mm, 0.15mm, 0.18mm, 0.2mm and 0.25mm
- Flow rate:
- (0.2mm) 3.1 lph at 60 bar
- Filterable:
- Yes

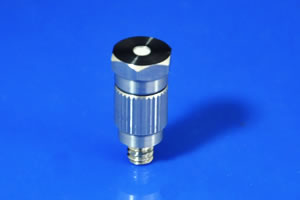

FI Ceramic Fine Mist Nozzle
Model FI mist nozzle has the same structure as other FD Series, the difference is that the nozzle cap is a hexagon, and there is a longer taper at the bottom of the nozzle body to accommodate different environments for hanging.
- Model:
- FI Series
- Construction:
- Two-piece body without the filter
- Material:
- nickel plated brass or 304 stainless steel
- Thread:
- 10/24, 12/24, W3/16 or M5
- Pressure:
- 20 to 70 bar
- Spray angle:
- 30° to 90° at 60 bar
- Flow rate:
- 0.2mm, 0.25mm, 0.3mm up to 0.8mm
- Filterable:
- No

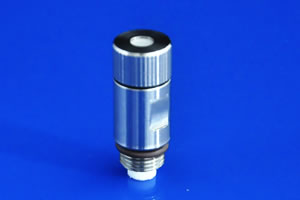

FK Ceramic Fine Mist Nozzle
Model FK mist nozzle has the same structure as other FG Series, the difference is that the thread size is M8, and there is a filter plug at the bottom of the nozzle inlet.
- Model:
- FK Series
- Construction:
- Two-piece body with a filter
- Material:
- 304 stainless steel
- Thread:
- M8
- Pressure:
- 20 to 70 bar
- Spray angle:
- 30° to 90° at 60 bar
- Flow rate:
- 0.2mm, 0.25mm, 0.3mm up to 0.8mm
- Filterable:
- No

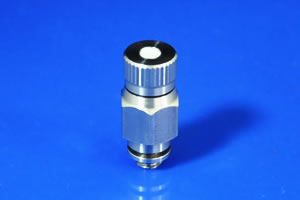

FL Ceramic Fine Mist Nozzle
Model FL mist nozzle has the same structure as other FD Series, the difference is that the nozzle body is a hexagon, and there is a metal seal at the bottom of the nozzle thread.
- Model:
- FL Series
- Construction:
- Two-piece body with a filter
- Material:
- 304 stainless steel
- Thread:
- 10-32UNF
- Pressure:
- 20 to 70 bar
- Spray angle:
- 30° to 90° at 60 bar
- Flow rate:
- 0.2mm, 0.25mm, 0.3mm up to 0.8mm
- Filterable:
- No
FE Filterable Ruby Mist Nozzle
Model FE is a lengthened high pressure mist nozzle. Besides of the anti-drip valve, it still has a filter base. The ruby orifice is recommended from 0.1mm to 0.3mm. The 316 stainless steel is available on request.
- Model:
- FE Series
- Construction:
- Three-piece body with filter base
- Material:
- nickel plated brass, 304 stainless steel
- Thread:
- 10/24, 12/24, W3/16 or M5
- Pressure:
- 30 to 70 bar
- Spray angle:
- 30° to 90° at 60 bar
- Orifice:
- 0.1mm, 0.15mm, 0.2mm and 0.3mm
- Flow rate:
- 3.0 lph @ 60 bar
- Filterable:
- Yes
FF Filterable Ruby Mist Nozzle
Model FF is made of 304 stainless steel, which consists of the body, cap, spray disc, anti-drip valve and filter plug. It has a hexagon body with 1/8" male taper pipe threads. All parts are removable, cleanable and replacement.
- Model:
- FF Series
- Construction:
- Two-piece hexagon body with a filter plug
- Material:
- 304 stainless steel
- Thread:
- 1/8 male BSPT/NPT
- Pressure:
- 30 to 80 bar
- Spray angle:
- 30° to 85° at 60 bar
- Orifice:
- 0.1mm, 0.15mm, 0.2mm and 0.3mm
- Filterable:
- Yes
FJ Ruby Impact Pin Mist Nozzle
Model FJ produces extremely fine fog masses, which is especially suitable for spray humidification and making artificial landscapes outdoor. The 0.15mm orifice is for ruby orifice, and it has a long lifetime due to the ruby's high abrasion resistance.
- Model:
- FJ Series
- Construction:
- One-piece body with a filter plug
- Material:
- 304 stainless steel or 316 stainless steel
- Thread:
- 1/8 or 1/4 male BSPT/NPT
- Pressure:
- 20 to 70 bar
- Spray angle:
- 80° to 120° at 60 bar
- Ruby orifice:
- 0.15mm
