Ceramic-orifice Fine Mist Nozzles
The ceramic-orifice fine mist nozzles, consist of cap, ceramic spray plate, guide-flow vane, anti-drip valve, and main body. Materials can choose brass plating, 304 stainless steel or 316 stainless steel. Compared with stainless steel spray plate, the ceramic material on the wear-resistant, higher surface finish, and ceramic is less prone to scale, low surface adhesion. These advantages can make the ceramic mist nozzle service life longer. When the temperature is below zero in winter, the ceramic nozzle should be removed in time to prevent the ceramic from bursting at low temperatures.

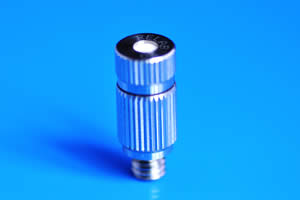

FD Cleanable Ceramic Mist Nozzle
Model FD is a common high pressure mist nozzle. Its open pressure is 20 bar due to an internal anti-drip valve. Model FD-CE is a ceramic orifice nozzle without the filter. The construction is the same as FD-SS model, except for the orifice.
- Model:
- FD Series
- Construction:
- Two-piece body without the filter
- Material:
- nickel plated brass or 304 stainless steel
- Thread:
- 10/24, 12/24, W3/16 or M5
- Pressure:
- 20 to 70 bar
- Spray angle:
- 30° to 90° at 60 bar
- Flow rate:
- 0.2mm, 0.25mm, 0.3mm up to 0.8mm
- Filterable:
- No

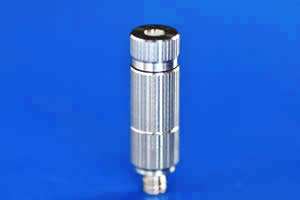

FE Filterable Ceramic Mist Nozzle
Model FE is a lengthened high pressure mist nozzle. Besides of the anti-drip valve, it still has a filter base. Its mini. orifice diameter is 0.1mm. The 316 stainless steel is available on request.
- Model:
- FE Series
- Construction:
- Three-piece body with filter base
- Material:
- nickel plated brass, 304 stainless steel
- Thread:
- 10/24, 12/24, W3/16 or M5
- Pressure:
- 30 to 70 bar
- Spray angle:
- 30° to 90° at 60 bar
- Flow rate:
- 0.1mm, 0.15mm, 0.2mm up to 0.5mm ceramic
- Filterable:
- Yes

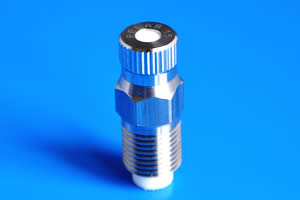

FF Filterable Ceramic Mist Nozzle
Model FF is made of 304 stainless steel, which consists of the body, cap, spray disc, anti-drip valve and filter plug. It has a hexagon body with 1/8" male taper pipe threads. All parts are removable, cleanable and replacement.
- Model:
- FF Series
- Construction:
- Two-piece hexagon body with a filter plug
- Material:
- 304 stainless steel
- Thread:
- 1/8 male BSPT/NPT
- Pressure:
- 30 to 80 bar
- Spray angle:
- 30° to 85° at 60 bar
- Flow rate:
- 0.1mm, 0.15mm, 0.2mm, 0.3mm up to 0.5mm
- Filterable:
- Yes

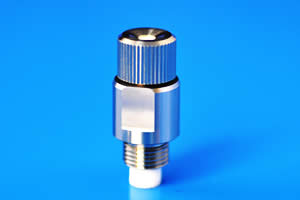

FG 316SS Ceramic Fog Nozzle
Compared to the FD, FE and FF series, the FG model has a larger ceramic spray disc and SS316 body. Ceramic material has a higher finish than stainless steel, and the liquid has a stronger pass rate at the same pressure.
- Model:
- FG Series
- Construction:
- Two-piece round body with an anti-drip valve
- Material:
- 316 stainless steel
- Thread:
- 1/8 male BSPP/NPS parallel pipe thread
- Pressure:
- 30 to 80 bar
- Spray angle:
- 30° to 85° at 60 bar
- Orifice:
- 0.1mm, 0.15mm, 0.18mm, 0.2mm and 0.25mm
- Flow rate:
- (0.2mm) 3.1 lph at 60 bar
- Filterable:
- Yes

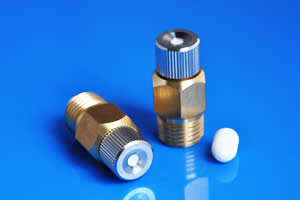

FH Brass Ceramic Fog Nozzle
Compared to the FD, FE and FF series, the FH model has a larger ceramic spray disc and 1/4" male thread. Ceramic material has a higher finish than stainless steel, and the liquid has a stronger pass rate at the same pressure.
- Model:
- FG Series
- Construction:
- Two-piece round body with an anti-drip valve
- Material:
- Brass body and 316SS cap
- Thread:
- 1/4 male BSPT/NPT threads
- Pressure:
- 30 to 80 bar
- Spray angle:
- 30° to 85° at 60 bar
- Orifice:
- 0.1mm, 0.15mm, 0.18mm, 0.2mm and 0.25mm
- Flow rate:
- (0.2mm) 3.1 lph at 60 bar
- Filterable:
- Yes
FI Ceramic Fine Mist Nozzle
Model FI mist nozzle has the same structure as other FD Series, the difference is that the nozzle cap is a hexagon, and there is a longer taper at the bottom of the nozzle body to accommodate different environments for hanging.
- Model:
- FI Series
- Construction:
- Two-piece body without the filter
- Material:
- nickel plated brass or 304 stainless steel
- Thread:
- 10/24, 12/24, W3/16 or M5
- Pressure:
- 20 to 70 bar
- Spray angle:
- 30° to 90° at 60 bar
- Flow rate:
- 0.2mm, 0.25mm, 0.3mm up to 0.8mm
- Filterable:
- No
FK Ceramic Fine Mist Nozzle
Model FK mist nozzle has the same structure as other FG Series, the difference is that the thread size is M8, and there is a filter plug at the bottom of the nozzle inlet.
- Model:
- FK Series
- Construction:
- Two-piece body with a filter
- Material:
- 304 stainless steel
- Thread:
- M8
- Pressure:
- 20 to 70 bar
- Spray angle:
- 30° to 90° at 60 bar
- Flow rate:
- 0.2mm, 0.25mm, 0.3mm up to 0.8mm
- Filterable:
- No
FL Ceramic Fine Mist Nozzle
Model FL mist nozzle has the same structure as other FD Series, the difference is that the nozzle body is a hexagon, and there is a metal seal at the bottom of the nozzle thread.
- Model:
- FL Series
- Construction:
- Two-piece body with a filter
- Material:
- 304 stainless steel
- Thread:
- 10-32UNF
- Pressure:
- 20 to 70 bar
- Spray angle:
- 30° to 90° at 60 bar
- Flow rate:
- 0.2mm, 0.25mm, 0.3mm up to 0.8mm
- Filterable:
- No
