Micro Mist Tips
Relab's micro-mist nozzles are suitable for low-pressure misting systems, operating at a working pressure of 3-20 bar. The FA series is a small mist tip with threaded and barbed mounting types, and there are a variety of sizes and hole diameters for option. The FB series is a quick-connect mist nozzle with an anti-drip valve, operating a working pressure of 10-20 bar, and there are nickel-brass and stainless steel materials for option. This nozzle uses a ceramic spray disc, which is economical and more durable.

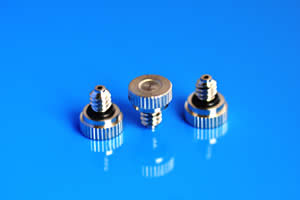

FA Mist Tip
Model FA is a low pressure mist tip, the body is made of brass or stainless steel. This mist tip is available in combination with various spray clusters. This mist tip is widely used in mosquito control and outdoor humidification.
- Model:
- FA Series
- Construction:
- One-piece body without the anti-drip valve
- Material:
- nickel plated brass or stainless steel
- Connection:
- 10-24, 12-24, W3/16 or M5
- Pressure:
- 3-15 bar
- Orifice:
- 0.2mm, 0.3mm up to 1.0mm
- Spray angle:
- 42° to 90° at 10 bar
- Flow Rate:
- (0.3mm) 2.5 lph at 10 bar

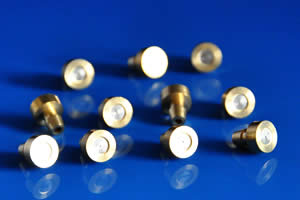

FA Barb Mist Tip
Model FA is a low pressure mist tip, the body is made of brass or stainless steel. The connection type is available in thread or barb style. This barb stem can be inserted into a 6mm or 1/4" plastic tubing.
- Model:
- FA Series
- Construction:
- One-piece body without the anti-drip valve
- Material:
- nickel plated brass or stainless steel
- Connection:
- 6mm or 1/4 inch barb
- Pressure:
- 3-15 bar
- Orifice:
- 0.2mm, 0.3mm up to 1.0mm
- Spray angle:
- 42° to 90° at 10 bar
- Flow rate:
- (0.3mm) 2.5 lph at 10 bar

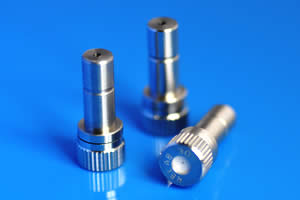

FB Quick connect Mist Tip
Model FB is a low pressure mist tip, the body is made of brass or stainless steel. The connection body is available in push-in stem style. It is very easy to push into a quick couplings. This nozzle can be fitted with a filter plug at the inlet.
- Model:
- FB Series
- Construction:
- Two-piece body with an anti-drip valve
- Material:
- nickel plated brass or stainless steel
- Connection:
- 6mm or 1/4 inch push-in stem
- Pressure:
- 7 to 15 bar
- Spray angle:
- 42° to 90° at 10 bar
- Orifice:
- 0.2mm, 0.3mm up to 1.0mm
- Flow rate:
- (0.3mm orifice) 4.65 lph at 10 bar
