Plastic Micro Mist Nozzles
The FC Series plastic micro-mist nozzles achieve fine atomization at low pressure. Featuring bore diameters as small as 0.28mm (with 0.4mm also available), they deliver an excellent spray mist at pressures starting from just 3 bar—typical of standard tap water pressure in most countries. To accommodate global requirements, these nozzles come fitted with BSPT or NPT threads. Additionally, they are offered with or without an anti-drip valve, providing flexibility for applications where drip prevention is critical.

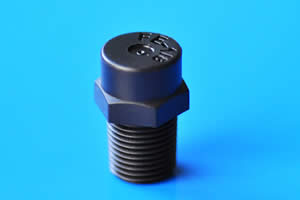

FC Plastic Micro Mist Nozzle
Model FC is hydraulic plastic mist nozzle, the body is made of PP plastic in black color with a screen mesh. This plastic mist nozzle is widely used in mosquito control, yard, stock farm cooling and humidification.
- Model:
- FC Series
- Construction:
- One-piece body without anti-drip valves
- Material:
- polypropylene plastic
- Thread:
- 1/8 inch male either BSPT or NPT
- Pressure:
- 4 to 15 bar
- Orifice:
- 0.3mm/0.4mm
- Spray angle:
- 65° to 80° at 4 bar
- Flow rate:
- (0.3mm) 3.1 lph at 4 bar

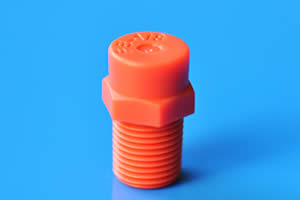

Anti-drip Plastic Micro Mist Nozzle
Model FC is hydraulic plastic mist nozzle, there is an anti-drip valve inside of it, so this type needs a higher working pressure of more than 3 bar. This plastic mist nozzle is widely used in mosquito control, yard, stock farm cooling and humidification.
- Model:
- FC Series
- Construction:
- One-piece body with an anti-drip valve
- Material:
- polypropylene plastic
- Thread:
- 1/8 inch male either BSPT or NPT
- Pressure:
- 4 to 15 bar
- Orifice:
- 0.3mm/0.4mm
- Spray angle:
- 65° to 80° at 4 bar
- Flow rate:
- (0.3mm) 3.1 lph at 4 bar
