Ruby-orifice Fine Mist Nozzles

For the ruby-orifice fine mist nozzles, its nozzle using Mohs hardness ≥ 9.0 artificial ruby spray disc, can withstand 70-120bar high-pressure water friction impact for a long time, the wear rate is much lower than ceramic and stainless steel nozzle. Standard orifice diameter of 0.1mm, 0.15m, 0.20m, 0.30mm. atomized particles in the diameter of 1-20μm, and the atomization effect of the attenuation of extreme, dense fog. Ruby-orifice fine mist nozzle with its special design, in the industrial, landscape, environmental protection and other fields to show significant advantages.

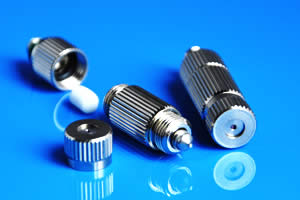

FE Filterable Ruby Mist Nozzle

Model FE is a lengthened high pressure mist nozzle. Besides of the anti-drip valve, it still has a filter base. The ruby orifice is recommended from 0.1mm to 0.3mm. The 316 stainless steel is available on request.

Model:: FE Series
Construction:: Three-piece body with filter base
Material:: nickel plated brass, 304 stainless steel
Thread:: 10/24, 12/24, W3/16 or M5
Pressure:: 30 to 70 bar
Spray angle:: 30° to 90° at 60 bar
Orifice:: 0.1mm, 0.15mm, 0.2mm and 0.3mm
Flow rate:: 3.0 lph @ 60 bar
Filterable:: Yes

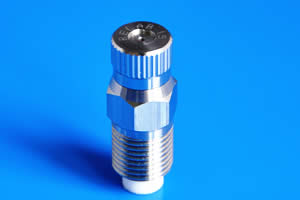

FF Filterable Ruby Mist Nozzle

Model FF is made of 304 stainless steel, which consists of the body, cap, spray disc, anti-drip valve and filter plug. It has a hexagon body with 1/8" male taper pipe threads. All parts are removable, cleanable and replacement.

Model:: FF Series
Construction:: Two-piece hexagon body with a filter plug
Material:: 304 stainless steel
Thread:: 1/8 male BSPT/NPT
Pressure:: 30 to 80 bar
Spray angle:: 30° to 85° at 60 bar
Orifice:: 0.1mm, 0.15mm, 0.2mm and 0.3mm
Filterable:: Yes

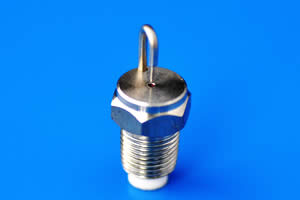

FJ Ruby Impact Pin Mist Nozzle

Model FJ produces extremely fine fog masses, which is especially suitable for spray humidification and making artificial landscapes outdoor. The 0.15mm orifice is for ruby orifice, and it has a long lifetime due to the ruby's high abrasion resistance.

Model:: FJ Series
Construction:: One-piece body with a filter plug
Material:: 304 stainless steel or 316 stainless steel
Thread:: 1/8 or 1/4 male BSPT/NPT
Pressure:: 20 to 70 bar
Spray angle:: 80° to 120° at 60 bar
Ruby orifice:: 0.15mm
