SS-orifice Fine Mist Nozzles
The SS-orifice fine mist nozzles selected quality high-quality 304 stainless steel. Their spray disc and cap are removeable, which is convenient for cleaning and replacement, reducing maintenance costs for customers. The stainless steel disc will not crack under low temperature conditions. FD Series is a simple stainless steel nozzle without filters, orifice diameter is optional from 0.2mm to 0.8mm. There is an integrated or external filter plug for the FE and FF Series, and the orifice diameter is optional from 0.1mm to 0.5mm orifice. Suitable for indoor and outdoor humidification, cooling, temperature reduction, etc.

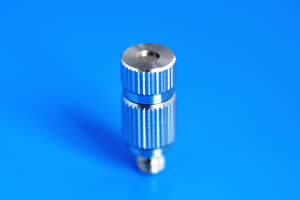

FD Stainless Steel Fine Mist Nozzle
Model FD is a common high pressure mist nozzle. Its open pressure is 20 bar due to an internal anti-drip valve. This model is without any filter or strainer/screen, so the mini. orifice diameter is 0.2mm only.
- Model:
- FD Series
- Construction:
- Two-piece round body without filter plug
- Material:
- nickel plated brass or 304SS
- Thread:
- W3/16, 10/24, 12/24 or M5
- Pressure:
- 30 to 80 bar
- Spray angle:
- 30° to 90° at 60 bar
- Orifice:
- 0.2mm, 0.25mm, 0.3mm up to 0.8mm
- Filterable:
- No

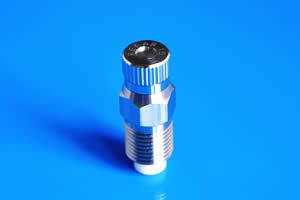

FF Filterable Fine Mist Nozzle
Model FF is made of 304 stainless steel, which consists of the body, cap, spray disc, anti-drip valve and filter plug. It has a hexagon body with 1/8" male taper pipe threads. All parts are removable, cleanable and replacement.
- Model:
- FF Series
- Construction:
- Two-piece hexagon body with a filter plug
- Material:
- 304 stainless steel
- Thread:
- 1/8 male BSPT/NPT
- Pressure:
- 30 to 80 bar
- Spray angle:
- 30° to 85° at 60 bar
- Flow rate:
- 0.1mm, 0.15mm, 0.2mm up to 0.5mm

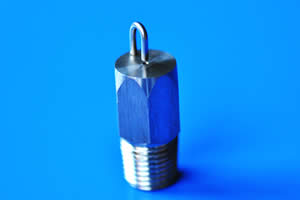

FJ SS Impact Pin Mist Nozzle
Model FJ produces extremely fine fog masses, which is especially suitable for spray humidification and making artificial landscapes outdoor. The full stainless steel body is available in various orifice diameter.
- Model:
- FJ Series
- Construction:
- One-piece body with a filter plug
- Material:
- 304 stainless steel or 316 stainless steel
- Thread:
- 1/8 or 1/4 male BSPT/NPT
- Pressure:
- 20 to 70 bar
- Spray angle:
- 80° to 120° at 60 bar
- Orifice:
- 0.2mm, 0.3mm up to 1.0mm
