M Series: Fine-mist System Fittings
Fine-mist system fittings are a single-fluid hydraulic fitting that can be assembled with the fine mist nozzles and operate at 70 bar pressure. A variety of materials are available: Ni-brass, 304 stainless steel and 316 stainless steel. In addition to these fittings listed, we also customize some special fittings according to the requirements from customers.

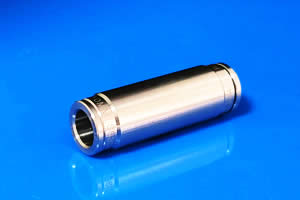

Slip Lock Pipe Union
Model 700 is a linear pipe coupling without thread hole. It is to connect two tubes of the same or different sizes to assist in extending the tube longer. The push lock union will become an end connector when you insert a plug into one end of it.
- Model:
- 700
- Construction:
- slip lock, double seals, without nozzle hole
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm, 12mm
- Pressure:
- 10 to 105 bar/1500psi

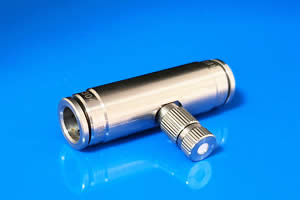

Slip Lock One-nozzle Connector
There is only one nozzle thread hole for the 701 single-jet fitting. Because of their unique internal structure and lock ring design, in the installation process, only need to fix the pipeline horizontally, which can save users 50% installation time.
- Model:
- 701
- Construction:
- slip lock, double seals and 1-nozzle hole
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 105 bar/1500psi
- Nozzle thread:
- 10/24, 12/24, W3/16 or M5
Double-nozzle Connector
There are two nozzle thread holes for the 701 double-jet fitting. The nozzle holes are angled 180° on both sides of the fitting, and the user can also choose 120° or 150° on request.
- Model:
- 702
- Construction:
- slip lock and double-seal
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 105 bar/1500psi
- Nozzle thread:
- 10/24, 12/24, W3/16 or M5

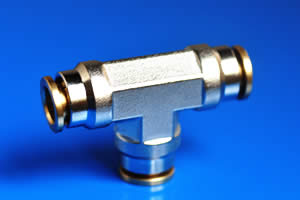

Slip Lock Tee
The one-piece body is selected from food-grade 304 stainless steel cast by mold, which is the best choice for the food processing industry. Compared with those split and bonded products, our slip lock tee is thicker and cost-free in material.
- Model:
- 703
- Construction:
- slip lock ring and double-seal
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 105 bar/1500psi

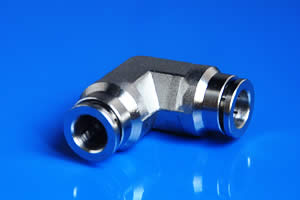

Slip Lock Elbow
The 90° elbow is a one-piece body selected from food-grade 304 stainless steel and cast by mold. Compared with those split and bonded products, our push lock elbow is thicker and cost-free in material selection.
- Model:
- 704
- Construction:
- slip lock ring and double-seal
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 105 bar/1500psi

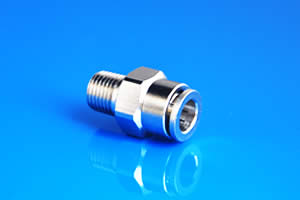

Slip Lock Male Adapter
Model 705 is thread adapter to connect pipes and other thread fittings or machines. One end of this fitting is the slip lock connection inlet, and the other end is the external/internal thread.
- Model:
- 705
- Construction:
- slip lock and double-seal
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 105 bar/1500psi
- Thread size:
- 1/8, 1/4 or 3/8 male BSPT/NPT

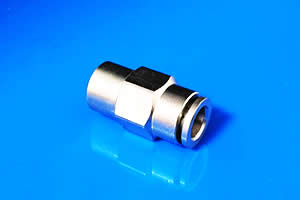

Slip Lock Female Adapter
Model 706 is thread adapter to connect pipes and other thread fittings or machines. One end of this fitting is the slip lock connection inlet, and the other end is the external/internal thread.
- Model:
- 706
- Construction:
- slip lock and double-seal
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 105 bar/1500psi
- Thread size:
- 1/8, 1/4, 3/8 female BSPP/NPS

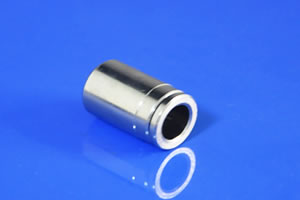

End Cap
For this model, one end is connected to the pipe, the other end is not perforated. It is specially used to seal water at the end of pipe.
- Model:
- 707
- Construction:
- slip lock ring and double-seal
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 105 bar/1500psi

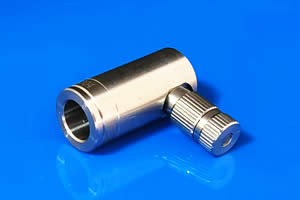

One-nozzle Off-set End
There is a nozzle threaded hole on the other side, the hole is angled 90° to the pipe connection inlet. It is available in three styles: no-hole, one-nozzle hole and two-nozzle hole.
- Model:
- 708
- Construction:
- slip lock ring and double-seal
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 105 bar/1500psi
- Thread size:
- 10/24, 12/24, W3/16 or M5

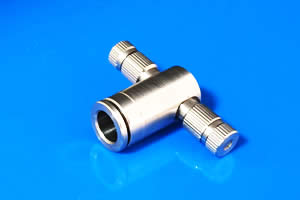

2-nozzle Off-set End
There is one-nozzle threaded hole on the other side, the hole is angled 90° to the pipe connection inlet. It is available in three styles: no-hole, one-nozzle hole and two-nozzle hole.
- Model:
- 709
- Construction:
- slip lock ring and double-seal
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 105 bar/1500psi
- Thread size:
- 10/24, 12/24, W3/16 or M5

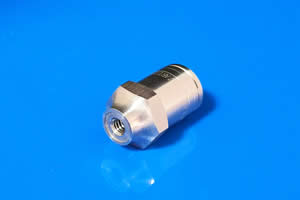

One-nozzle In-line End
This is an in-line pipe end coupling with one-nozzle thread hole. One end of it is a slip lock connection inlet, the other end is a nozzle threaded hole, which is opposite to the its inlet.
- Model:
- 710
- Construction:
- slip lock and double-seal
- Material:
- Ni-brass, 304SS or 316SS
- Pipe size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 105 bar/1500psi
- Thread size:
- 10/24, 12/24, W3/16 or M5

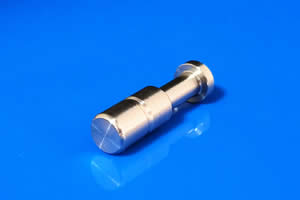

End Plug
This is an end plug, which has a prefabricated slot to secure the eight-jaw locking ring inside the slip lock fittings. It is compatible with other 700 series couplings. Insert it into one side of the couplings to quickly block a branch, such as tee.
- Model:
- 711
- Construction:
- One-piece plug
- Material:
- Ni-brass, 304SS, 316SS
- Size:
- OD1/4, 3/8, 1/2, 10mm or 12mm
- Pressure:
- 10 to 105 bar/1500psi

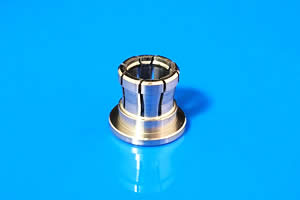

700 Series Fastener
The 711 lock ring produced from Relab is an 8-talon fastener. Compared with the ordinary 6-talon lock ring, its unique shape design ensures that the system is more stable during operation.
- Model:
- 712
- Construction:
- 8-talon
- Material:
- Ni-brass, 304SS, 316SS
- Pressure:
- 10 to 105 bar/1500psi
- Size:
- OD1/4, 3/8, 1/2, 10mm or 12mm

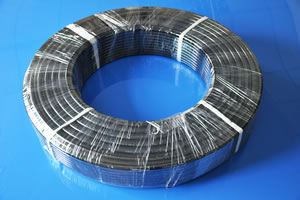

PA Nylon Coil Tube
The core advantage is that it can withstand working pressures of 100 bar or even higher, and is especially suitable for high-pressure fluid transportation scenarios thanks to the high toughness and creep resistance of PA6 material.
- Model:
- 901
- Material:
- PA6 raw material
- Size:
- OD9.5mm, 10mm or 12mm
- Thickness:
- 2.0mm
- Length:
- 100 meters per roll
- Color:
- Black, white or green
- Pressure:
- 100 bar

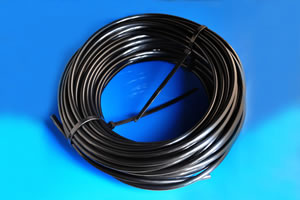

High Pressure HDPE Pipe
Compared with nylon pipe, HDPE pipe has less water absorption, smaller expansion coefficient, and lower cost, which is an ideal choice for some cooling places that want to reduce costs.
- Model:
- 902
- Material:
- HDPE material
- Size:
- 3/8 (9.52mm)
- Thickness:
- 2.75mm
- Length:
- 100 meters per roll
- Color:
- Black only
- Pressure:
- 70 bar/1000 psi

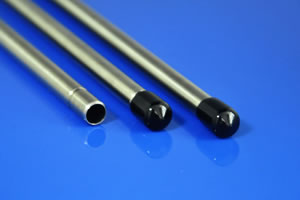

304 Stainless Steel Pipe with Grooves
The 304 stainless steel pipes can be selected from the outer diameter in 3/8", 10mm, 12mm. Its thickness can be 0.7mm or 1.0mm. The length can be customized in different sizes from 150 mm to 2500 mm.
- Model:
- 904
- Material:
- 304 stainless steel
- Size:
- 3/8 (9.52mm), 10mm, 12mm
- Thickness:
- 0.7mm, 1.0mm
- Tolerance:
- Outer diameter +/-0.03mm
- Length:
- 150mm to 2500mm
- Pressure:
- 100+ bar

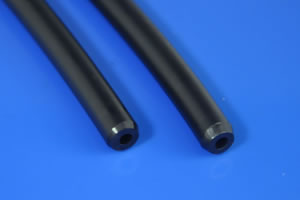

Custom Plastic Misting Tubing
This is a fixed-length nylon or HDPE tubing. The length can be cut into different sizes according to customer requirements. The inlet of each section of the tubing is beveled with a special chamfering knife to remove burrs.
- Model:
- 904
- Material:
- PA/HDPE raw material
- Size:
- OD3/8 (9.52mm)
- Thickness:
- 2.0/2.75mm
- Pressure:
- 70 bar/1000 psi
- Length:
- 0.5m, 1.0m, 1.5m, 2.5m
- Color:
- Black only

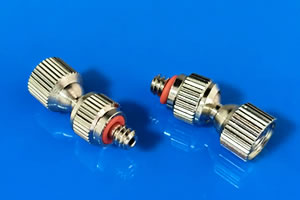

Adjustable-ball Swivel Joint
This adjustable ball swivel joint supports manual 50-degree left/right swivel and 360-degree horizontal rotation, enabling precise adjustment of spray angle and direction. Compact in size and tool-free installation, it is widely used in indoor and outdoor misting landscapes.
- Model:
- 801
- Material:
- Copper, SS304 or SS316
- Conn. thread:
- 10/24, 12/24, M5, W3/16 male
- Nozzle thread:
- 10/24, 12/24, M5, W3/16 female
- Swivel angle:
- left/right at 50 degree
- Rotate angle:
- 360 degree
- Pressure:
- 105 bar/1500 psi

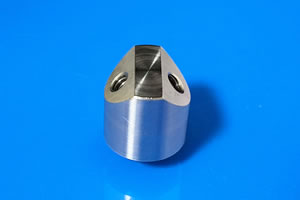

2-nozzle Cluster Seat
This 2-nozzle cluster seat is available in brass or stainless steel with a screw-on interface to ensure no leakage after diverting and the inlet seal can withstand long-term water pressure changes.
- Model:
- 802
- Material:
- brass, SS304, SS316
- Nozzle thread:
- 10/24, 12/24, M5, W3/16, 1/8 female
- Inlet thread:
- 10/24, 12/24, M5, W3/16, 1/8 or 1/4 male
- Customizable:
- compression, slip lock or set-screw type
- Pressure:
- 105 bar/1500 psi
- Length:
- 23-26mm

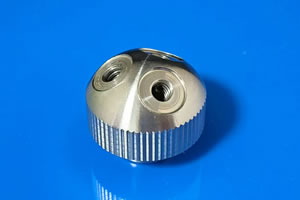

3-nozzle Cluster Seat
This 3-nozzle cluster is available in brass or stainless steel with a screw-on interface to ensure no leakage after diverting and the inlet seal can withstand long-term water pressure changes. Its inlet thread is available: 10/24, 12/24, W3/16, M5, M8 or 1/8.
- Model:
- 803
- Material:
- Copper, SS304, SS316
- Conn. thread:
- 10/24, 12/24, W3/16, M5, 1/8 male
- Nozzle thread:
- 10/24, 12/24, W3/16, M5, 1/8 female
- Pressure:
- 105 bar/1500 psi

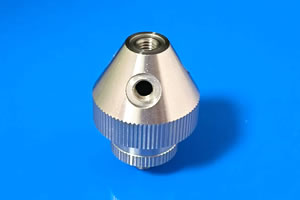

4-nozzle Cluster
The 4-nozzle cluster is a four-way misting joint designed with a one-in, four-out structure that can connect with four mist nozzles at the same time and spray in three different directions. The nozzle is available in a variety of threads: 10/24, 12/24, M5, W3/16 and M6.
- Model:
- 804
- Material:
- Copper, SS304, SS316
- Conn. thread:
- 10/24, 12/24, W3/16, M5, 1/8, 1/4, 3/8 male
- Nozzle thread:
- 10/24, 12/24, W3/16, M5, 1/8 female
- Pressure:
- 105 bar/1500 psi

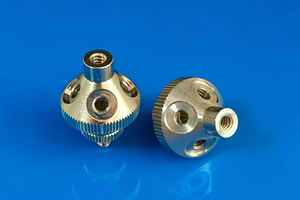

5-nozzle Cluster
The 5-nozzle cluster is a 5-way misting joint designed with a one-in, five-out structure that can connect with five mist nozzles at the same time and spray in five different directions. The nozzle is available in a variety of threads: 10/24, 12/24, W3/16, M5, M6, M8 and 1/8".
- Model:
- 805
- Material:
- brass, SS304, SS316
- Conn. thread:
- 10/24, 12/24, W3/16, M5, 1/8, 1/4, 3/8 male
- Nozzle thread:
- 10/24, 12/24, W3/16, M5, 1/8 female
- Pressure:
- 105 bar/1500 psi

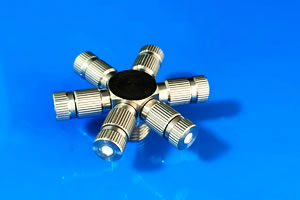

6-nozzle Misting Cluster
The 6-nozzle cluster is a 6-way misting joint designed with a one-in, six-out structure that can connect with six mist nozzles at the same time and spray in six different directions. Its inlet thread is available: 10/24, 12/24, W3/16, M5 or M6.
- Model:
- 806
- Material:
- brass, SS304 or SS316
- Conn. thread:
- 10/24, 12/24, W3/16, M5, M8, 1/8, 1/4 or 3/8
- Nozzle thread:
- 10/24, 12/24, W3/16, M5, M6, M8 or 1/8
- Pressure:
- 105 bar/1500 psi

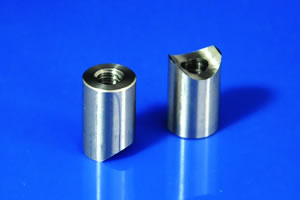

Welding Socket
This welding socket is with standardized internal threads, with available specifications including 10/24, 12/24, w3/16 or M5, flexibly matching models of mist nozzles to meet diverse application scenario needs.
- Model:
- 807
- Material:
- SS304 or SS316
- Nozzle thread:
- 10/24, 12/24, w3/16, M5
- Suitable pipe:
- OD3/8 or 9.5mm
- Pressure:
- 105 bar/1500 psi
- Drilling hole:
- 3-4mm
- Length:
- 10-12mm
